LC-PM1-250R Semi-Automatic Single Color Roller Pad Printing Machine

Printing color number : 1 colors

Maximum printing speed : 800pcs/hr

Payment Terms : T/T,D/P,D/A,L/C

Packaging Details : WOODEN CASE

Up and down stroke : 0-200mm

Delivery Time : 35days

Steel plate size : 160*583mm*0.5mm

Model Number : LC-PM1-250R

Place of Origin : China

Price : US $ 7100 / set

MOQ : 1set

Power supply : 220V 50Hz

Certification : CE

Model : LC-PM1-250R

Ink cup size : 140mm

Brand Name : LC

Front to back path : 0-400mm

Contact Now

Product Description

one color roller pad printing machine LC-PM1-250R

Operation mode: semi-automatic
Printing color number: 1 colors
Print heads: 1
Steel plate size 160*583mm*0.5mm
Ink cup size 140mm
Maximum printing speed 800pcs/hr
Up and down stroke 0-200mm
Front to back path 0-400mm
Table area: 650*165mm
Workstation: 1Pcs
Power supply: 220V 50Hz
Air pressure: 6 Bar

Application Area
This single-color roller pad printing machine is specifically designed for printing on elongated and cylindrical products. It is widely used for applying logos, batch numbers, expiration dates, barcodes, and simple patterns on items such as:

Bottles, cans, and cups
Cylindrical packaging and containers
Pens, tubes, and similar long-shaped products

Product Advantages

Optimized for Long & Cylindrical Products: Features an extended steel plate size (160*583mm) and a long front-to-back stroke (0-400mm), making it ideal for printing on tall or elongated items.
High Precision & Stability: The semi-automatic operation mode combined with a stable 6 Bar air pressure system ensures consistent printing quality and accurate positioning.
Efficient Production: Capable of reaching a maximum printing speed of 800pcs/hr, providing a good balance between speed and quality for medium-volume production runs.
Versatile Printing Stroke: The adjustable up-and-down stroke (0-200mm) accommodates products of varying heights, enhancing the machine's flexibility.
Closed Ink Cup System: The 140mm ink cup design minimizes solvent evaporation, reduces ink waste, and maintains a cleaner working environment.
User-Friendly Operation: Simple semi-automatic control makes it easy to operate and maintain, reducing the learning curve for operators.

Product Image

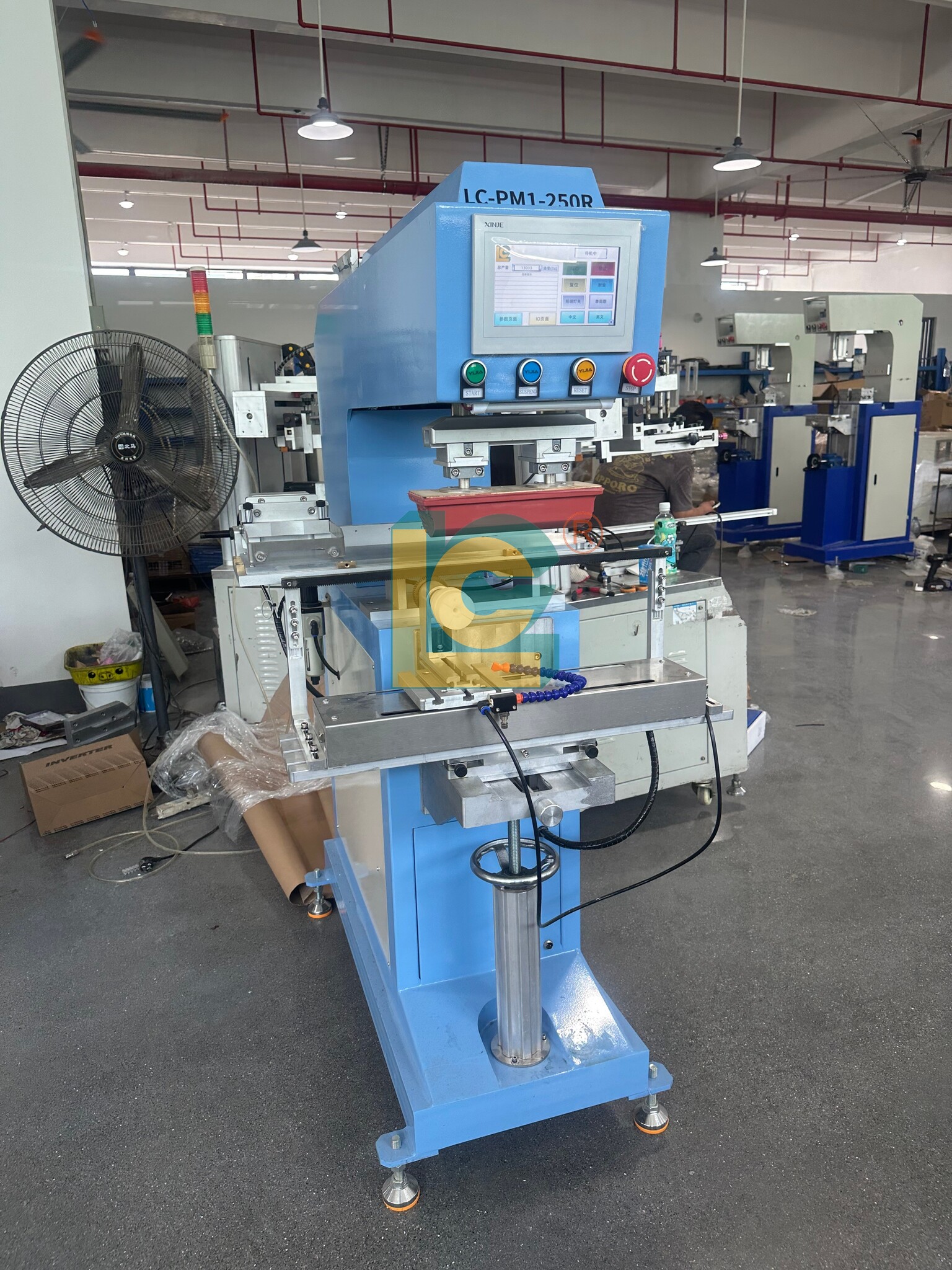

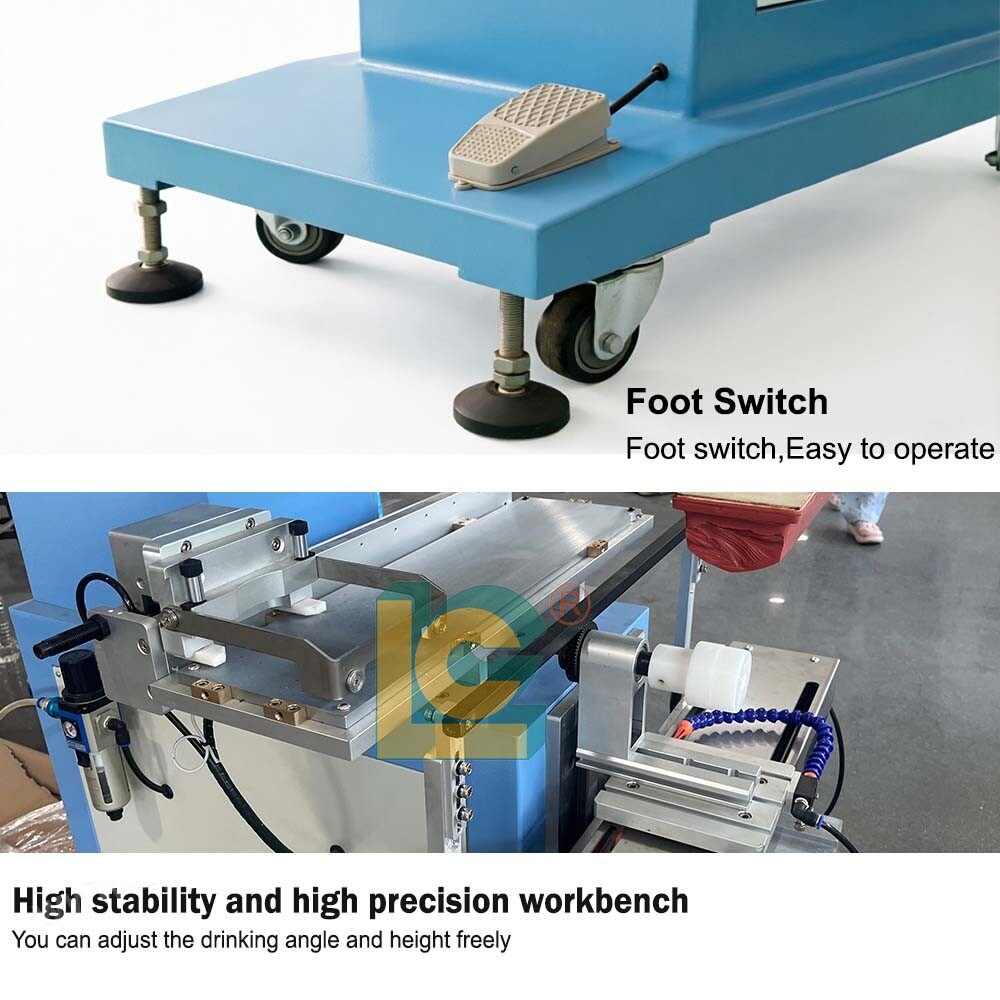

LC-PM1-250R Semi-Automatic Single Color Roller Pad Printing Machine Images
